Gigabit Fiber Optic Network Switch SFP Uplink Port Sliding Fixed Type

Name: Gigabit Fiber Optic Network Switch SFP Uplink Port Sliding Fixed Type
Brand: SINOHONE
Price: 38 USD

Brand Name : SINOHONE

Model Number : HY-648PI, Customized, LC, SC, FC, ST Adapters

Certification : ROHS / UL /CE / CPR / ISO9001

Place of Origin : Sichuan, China

MOQ : 1 PIECE

Price : USD 38 ~ 48 / PIECE

Payment Terms : Western Union, T/T, D/P, D/A, L/C

Supply Ability : 50000 Pieces per Month

Delivery Time : 5-8 work days

Packaging Details : Packing in Boxes and Cartons for Delivery

Product name : POE Support Fiber Optic Network Switch

Type : Sliding Fixed

Operating Temperature : -40°C to + 85°C

OEM/ODM : Available

Functions : LACP, POE, QoS, SNMP, Stackable, VLAN Support

Communication Mode : Full-Duplex & Half-Duplex

Contact Now

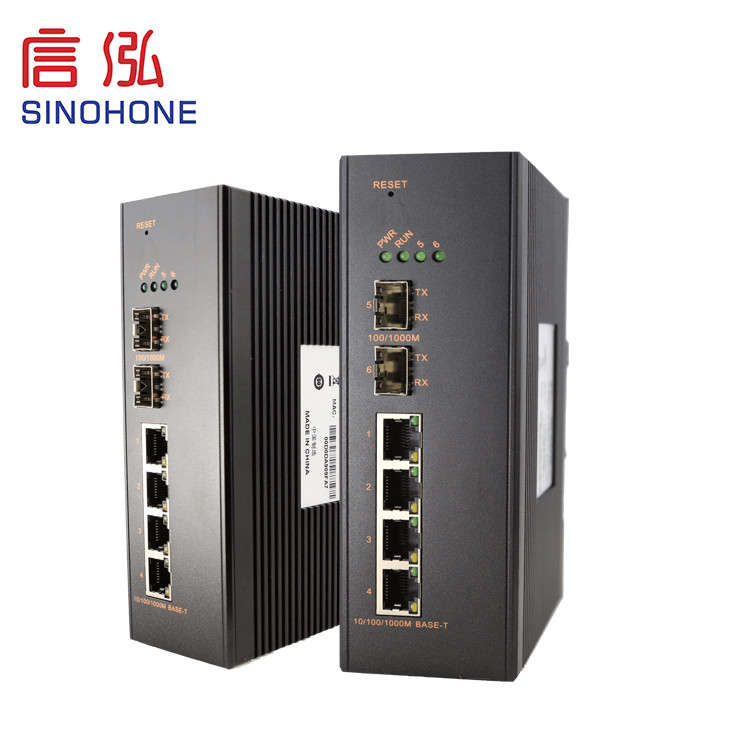

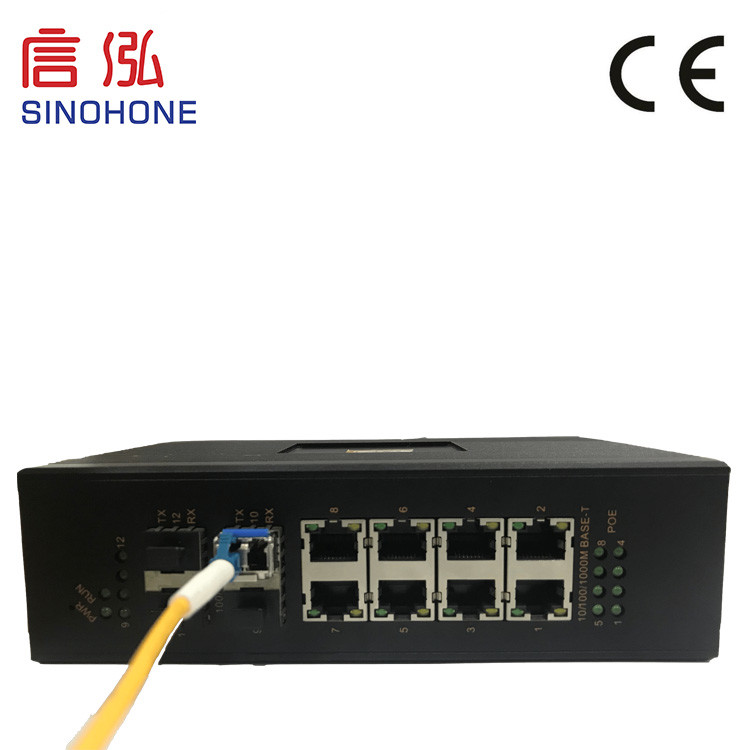

Sinohone-724 POE 12 16 48 port with 4 port SFP uplink port gigabit network switch

HY-648 is our industrial grade switch, which can be powered by POE and can be used as a PTN remote device.

The product provides high-speed Ethernet service access and supports Ethernet standard protocols.

It simplifies the complex protocol overhead of PTN and provides the OAM capability of the service layer, which makes the design and implementation of the access network more general.

It has the ability to connect with PTN, simplify the operation interface, make the network maintenance means effective and unified, and help to achieve efficient network management.

Features

The specially designed compact structure is good at preventing loose tubes from shrinking.
High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a critical protection of fiber.
Moisture proof and ratproof.
Small size, Light weight, with good bending resistance performance easy for installation.
Reasonable structure design and precise control for over length ensuring excellent characteristics of mechanical tensile strain and environment temperature.
High strength loose tube material with good performance of hydrolysis resistant, special tube filling compound ensure a critical protection of fiber.
Full section filled ensures moisture-proof and water blocking.

Applications

Local Area Network
CATV System
Telecommunication Networks
Equipment Test

Characteristics

Item	HY-648PI
Number of Interfaces	Gigabit SFP ports (or specify other optical port forms):4 Gigabit ports (POE power supply):8
Exchange Capacity	53G
Mbps	17.85
POE power Supply	Support
PTN Ring Network	Support PTN industrial ring network technology, using ERPS protocol, STP protocol
VLAN	Support 4K VLAN, VLAN conversion function, VLAN based on port, MAC, protocol, IP address and QinQ
MAC	8K MAC address table, support MAC address table dynamic automatic learning and static configuration
QOS	Support 8 level QOS queue, support SP, WRR queue scheduling policy
ACL	The number of ACL entries can be supported to 256
Management	Support local Console serial port and TELNET command line management; Support SSH; Support the unified management through the EMS management system independently developed by our company; Support remote device software upgrade and backup through FTP and TFTP; Support RMON performance statistics for ports
Power and Power Supply	No fan, low power consumption, the total power consumption of the equipment is less than 10W Industrial grade supports dc or ac power (dc parameters: default -48v:-36v~-72v, ac parameters: default 220V: 100V~260V)
Other Features	Port convergence/LACP supported, support 1:1 port protection Support interport protection based on the LACP protocol, linear protection based on the G.8031 protocol and ring network protection based on the G.8032 protocol Support port redirection and port mirror function, support port-based failover capabilities Support MSTP/RSTP protocol Support fiber breakage alarm; support power failure warning of Dying Gasp remote device Support equipment online upgrade Support storm suppression and port speed limit granules up tp 64K Support SLA, Link performance tests such as link delay, jitter, packet loss and throughput can be implemented Support port-based, 802.1p, DSCP, TOS, MAC address, VLAN ID, Ethernet Type
Operating Temperature	Industrial grade: (-40℃~70℃) Commercial grade: (-5℃~50℃)
Storage Temperature	-40℃~85℃
